[產品說明]: 牛皮線帶有黃色和白色兩種，柔軟而有韌性。

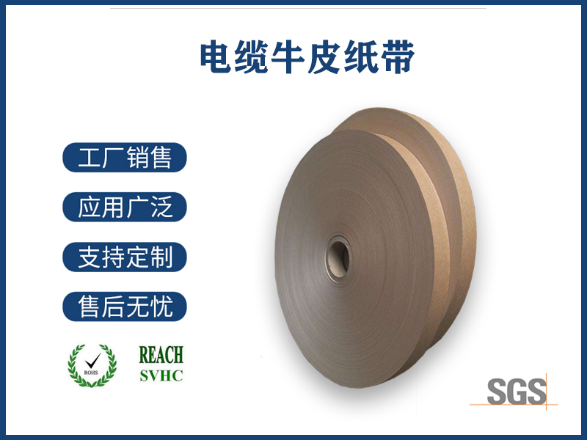

Product Description: Kraft paper tape has two kinds of yellow and white, soft and tough.
[應用方式]: 主要用于電機線，電磁線繞包，以及電機匝間絕緣。
Application: Mainly used for motor wire, electromagnetic winding, as well as inter turn insulation of motor.
一、主要技術指標：
Main specification:
| 產品規格Specification | 斷裂伸長率Elongation at break（%） | 拉伸強度Tensile strength（N/30mm） | 基重Basis weight（g/m2） |
| 40±5μm | 5↑ | 60↑ | 30±3 |
| 50±5μm | 5↑ | 70↑ | 40±4 |
| 60±10μm | 5↑ | 70↑ | 45±5 |
| 100±10μm | 5↑ | 100↑ | 70±5 |
| 除以上規格外，其它可按客戶特殊要求單獨設計。In addition to the above specifications, other special requirements can design according to customers | |||
二、顏色：黃色，白色
Color: Yellow, White三、電氣特性：耐高溫，耐高壓，耐硫化，比重輕，韌性非常好。
Electrical characteristics: High temperature resistance, high pressure resistance, vulcanization resistance, light weight, toughness is very good.
四、分切及包裝：分切最小寬度為5mm，內孔大小為52mm或76mm；收卷最大外徑為800mm，紙箱包裝。
Slitting and packaging: Slitting minimum width of 5mm, bore size of 52mm or 76mm; the winding maximum outer diameter of 800mm, carton packaging.
